Wednesday 26 September 2012

Gettin tanked

Carrying on from the last post i managed to find the time to nearly finish the tank & stand.Since this is the first time i have used timber to construct i had to change my method of painting & weathering,first i used floquil grimy black heavily thinned as the first coat,then tamiya jn grey thinned with isocol & finaly tamiya red again thinned with isocol to represent the red lead.As for the water inlet i used a spare brake cylinder from a silvermaz S wagon kit & air tank from a BD wagon kit as the float,a length of 20 thou brass wire to connect the float to the inlet valve & 1.2 mm welding wire as the inlet pipe.Overall i am  happy with the end result.
Anyhow till next time, Booly.

Friday 21 September 2012

Crookwell Tankstand

Well after looking on the net & magazines i could not find any info as to what type of tankstand Crookwell had.All that i could find were pictures of the concrete base for the supports,so i have used the tank & stand at Grenfell as the basis of the stand i have modeled.There are a few photos of this tank on NSWrail.net & also in AMRM June 2011 issue.
Now this is the first model i have made using scale lumber as i usually use styrene,and it certantly  wont be my last,i was impressed at how well it has turned out.Hopefully i find the time over the weekend to paint & weather,anyhow here are a few photos

Tuesday 11 September 2012

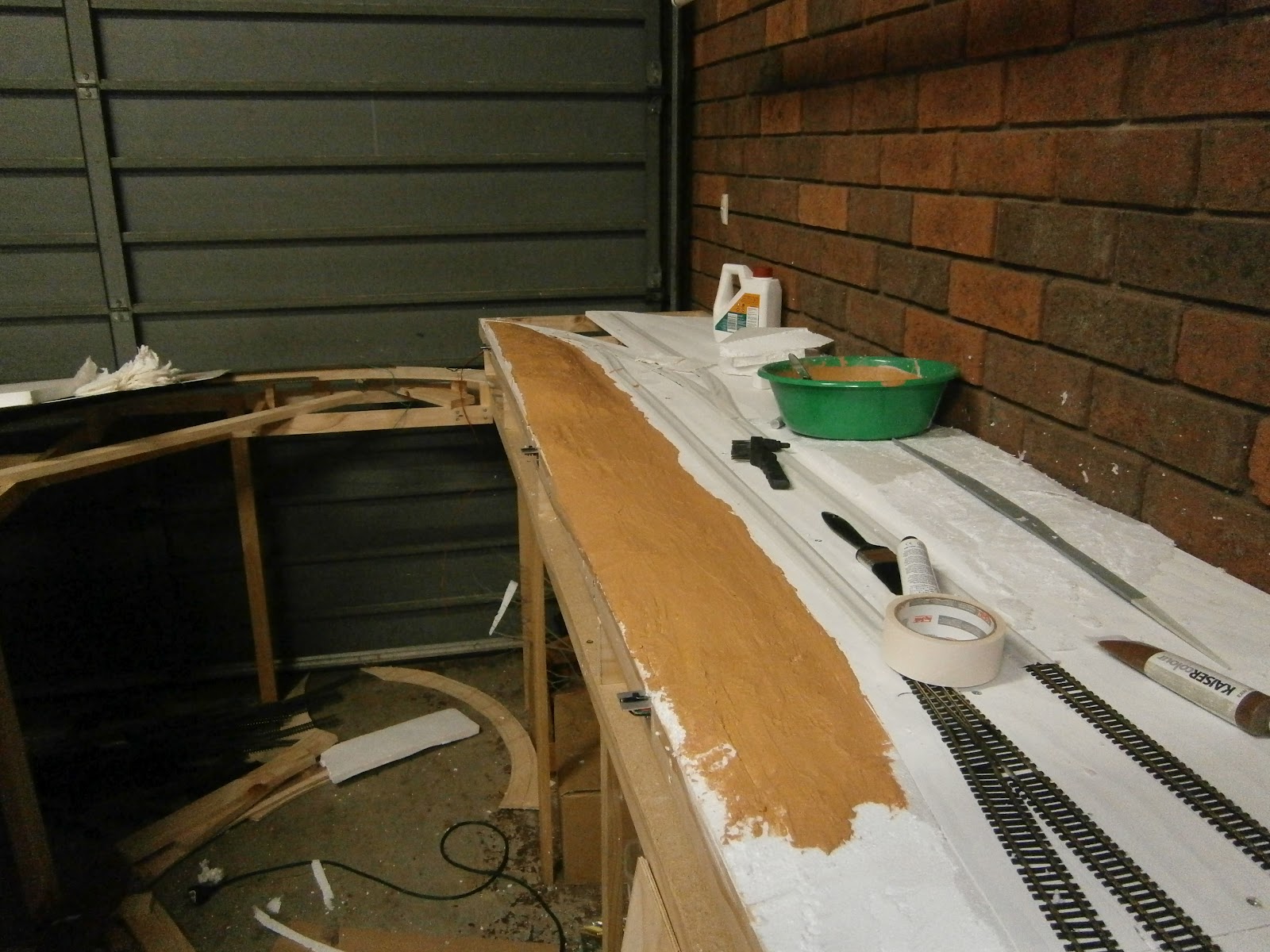

More on Crookwell
